36V 105AH LITHIUM BATTERY (LiFePO4) UPGRADE KIT (SP-36V105-GC) FOR GOLF CARTS

Original price was: $2,299.99.Current price is: $1,799.99.

  • 36V 105AH LiFePO4 Battery Pack
  • 250A BMS / Max Continuous Discharge
  • 600 A @ 3s / Peak Discharge Current
  • Bluetooth Ready (Built-In Receiver) / Android & iOS App
  • 36V 22A Fast Lithium Charger – Water Proof (CAN Enabled)
  • DC – DC 12V Converter / 30-45V
  • Charge Port: EZGO / CLUB CAR / YAMAHA / UNIVERSAL
  • 1.44” LCD State of Charge Meter with 10 Ft Cable
  • Battery Installation Brackets: EZGO / CLUB CAR / YAMAHA / UNIVERSAL
  • Installation Hardware (Screws / Nuts / Bolts)

Note:
At checkout, you will have the option to add a battery kit installation service, if available in your area.
We will also request your cart’s make, model, and year to ensure we supply the correct mounting hardware, precisely tailored to your vehicle.

Clear
SKU: N/A Categories: ,
Share :

Description

FIVE YEAR COST COMPARISON Between SONNY POWER & LEAD ACID BATTERIES

YEAR 1
YEAR 2
YEAR 3
YEAR 4
YEAR 5
battery-38.4v-105ah
$
Cost of Battery

Installation

Maintenance

Maintenance

Maintenance

Battery Change
$$$$
$$





Total
$$$$$$
soney power bat 6






$$
$
$
$
$
$$

Total
$$$$$$$$
100%

SAFE & RELIABLE

4X

LASTS 4X AS LONG

5X

CHARGES UP TO 5X FASTER

1/4

ONE QUARTER THE WEIGHT

200%

TWICE THE POWER OF TRADITIONAL BATTERIES

100%
SAFE & RELIABLE
4X
LASTS 4X AS LONG
5X
CHARGES UP TO 5X FASTER
1/4
ONE QUARTER THE WEIGHT
200%
TWICE THE POWER OF TRADITIONAL BATTERIES

Enhances Performance, Efficiency, Safety, and Longevity

Upgrade your golf cart battery for a smoother ride, reliable power, and extended durability!

180A BMS

MAX CONTINUOUS DISCHARGE

sp gcb open 1

500A 2S

PEAK DISCHARGE CURRENT

sp gcb bms 1
sp compo 1a 1
sp back image 3

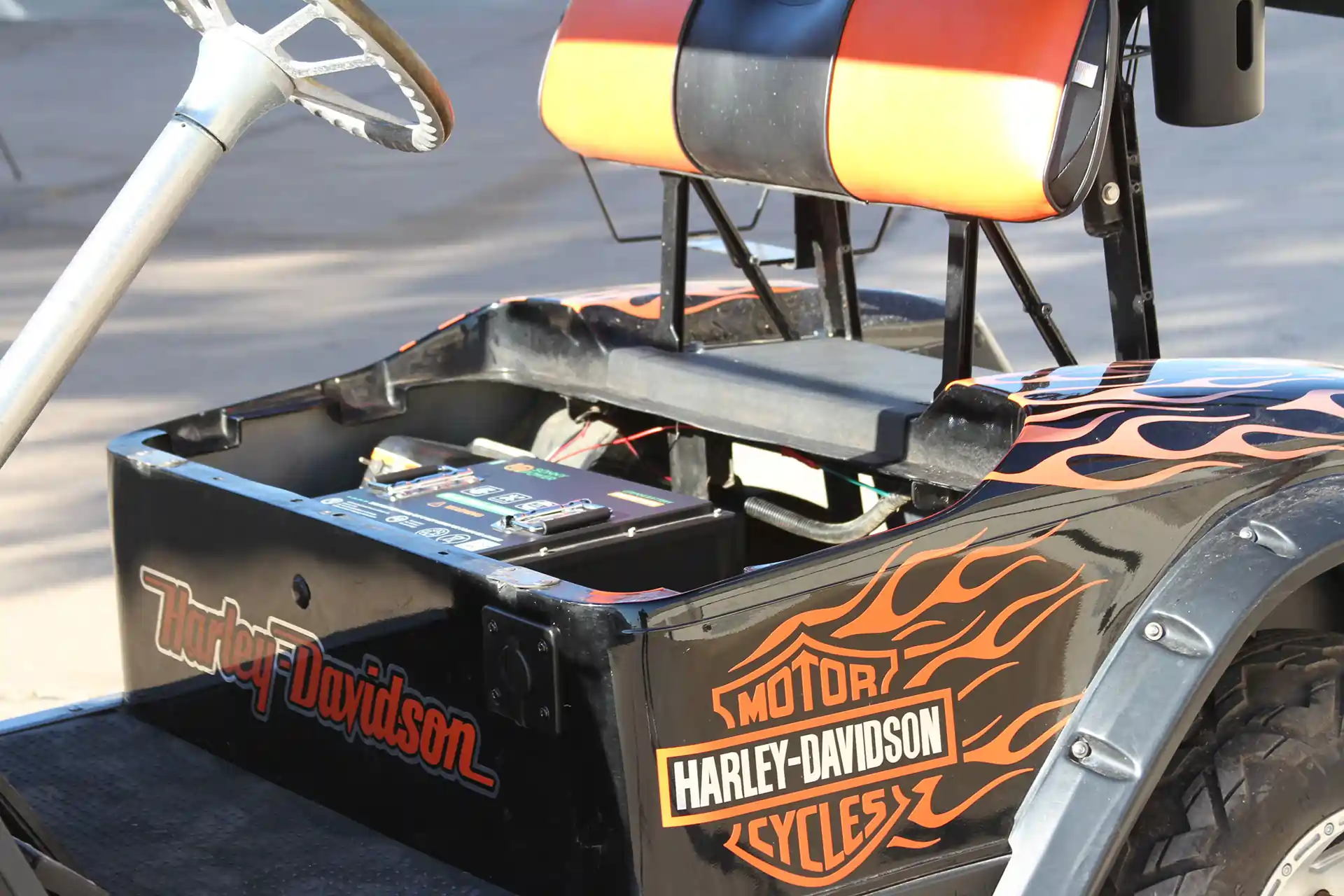

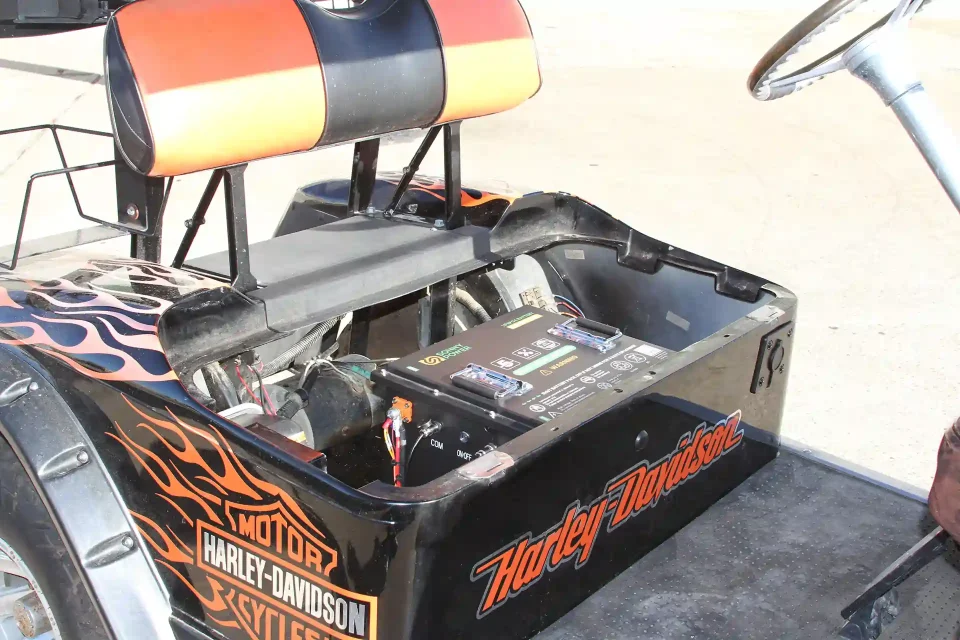

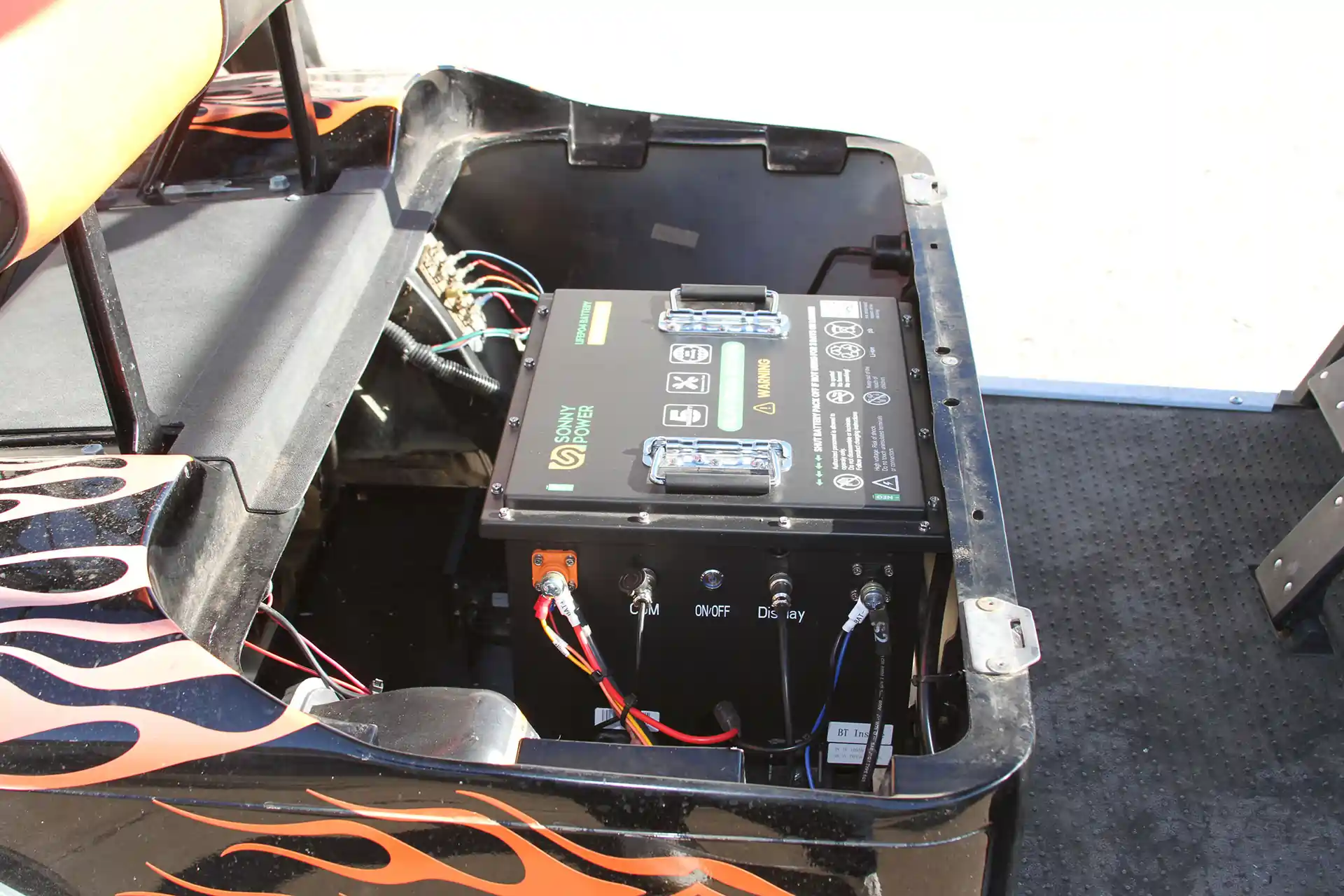

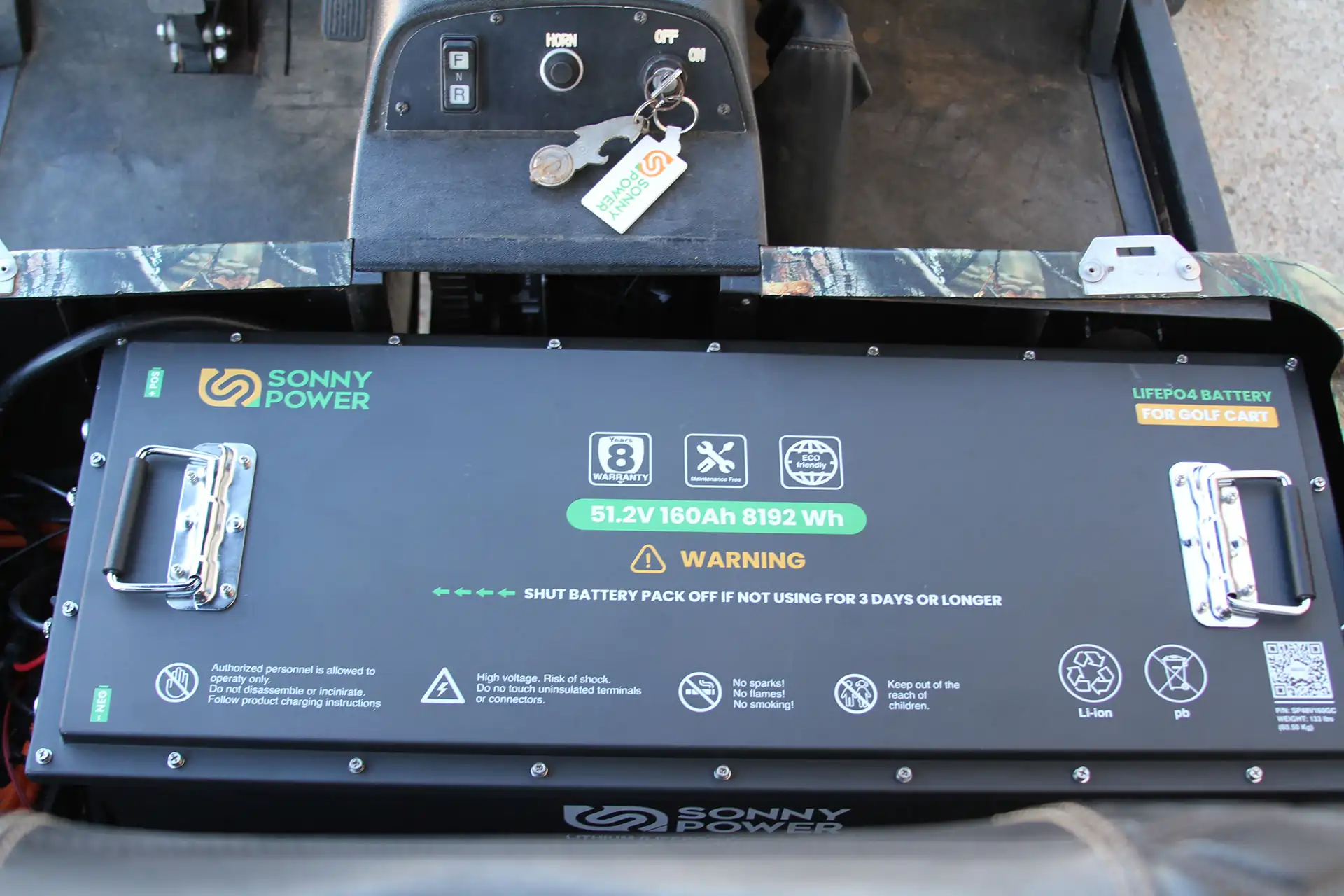

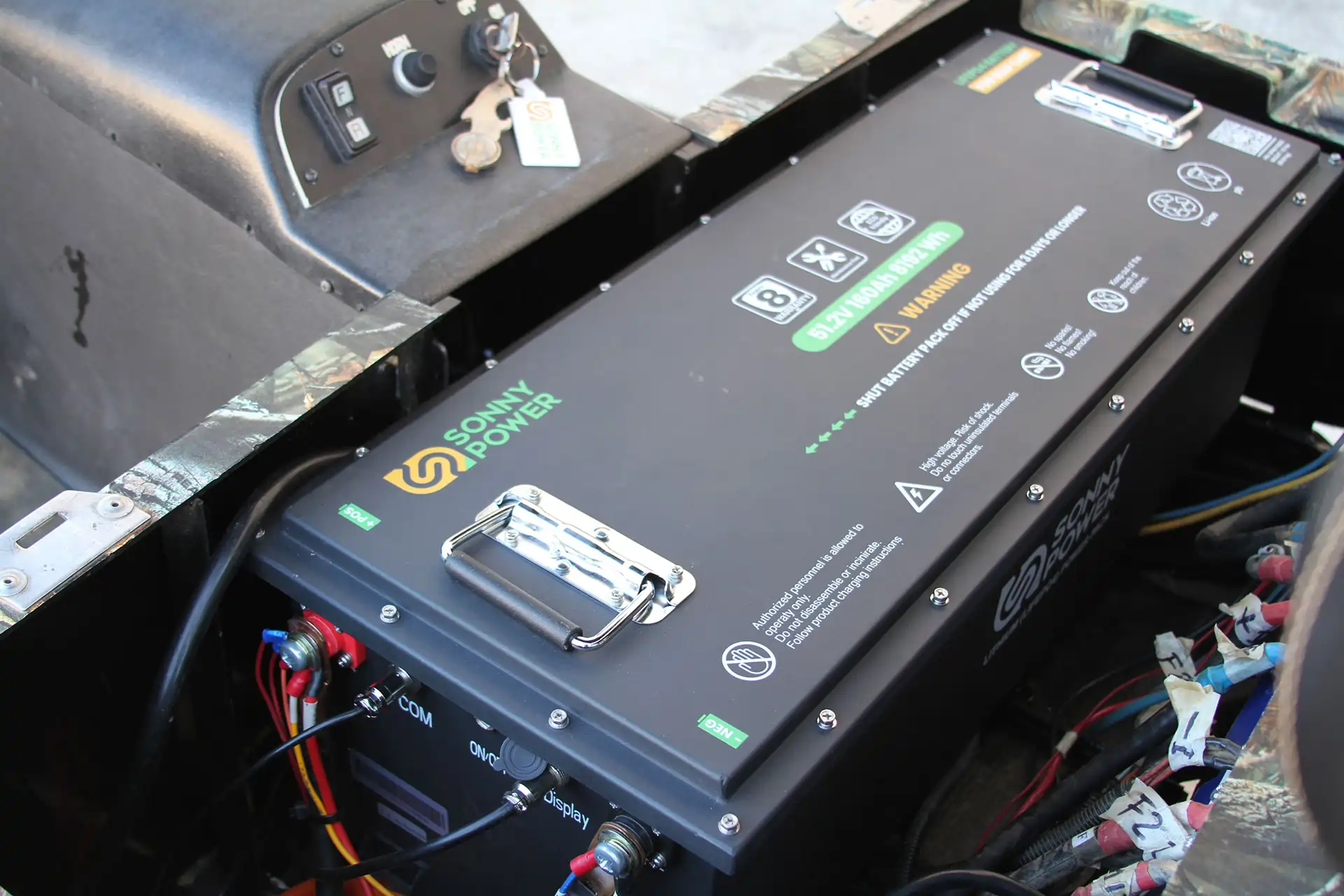

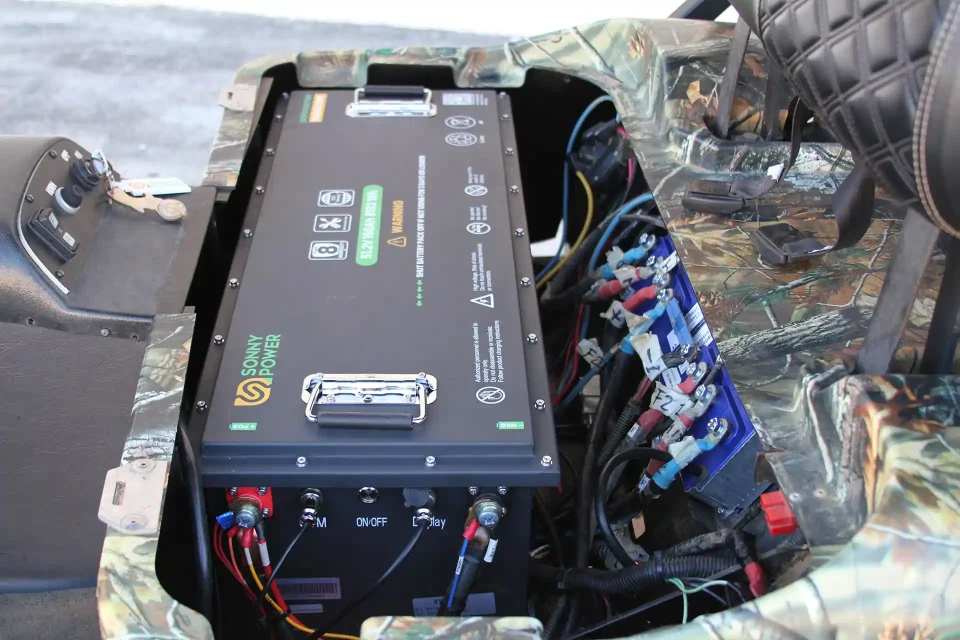

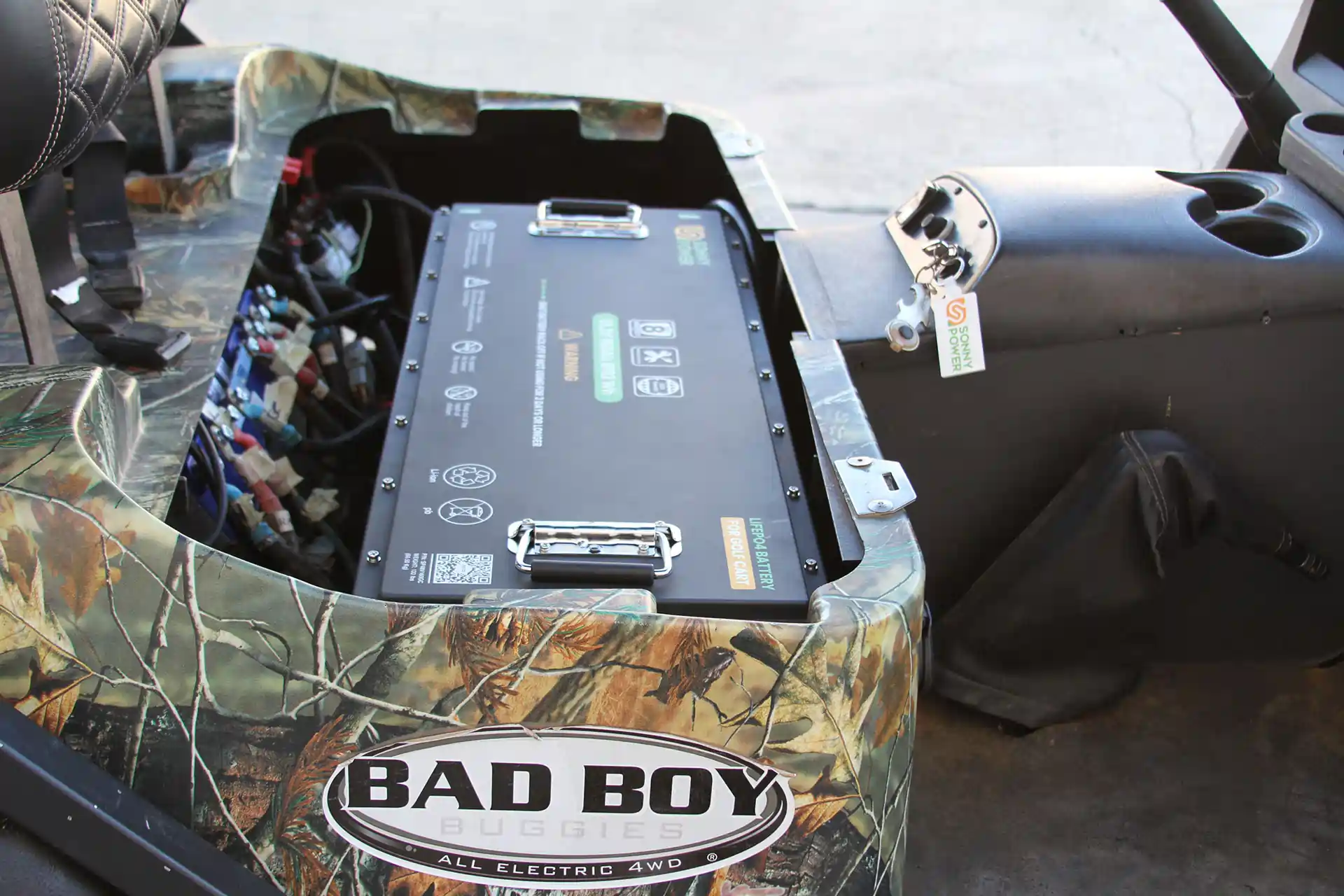

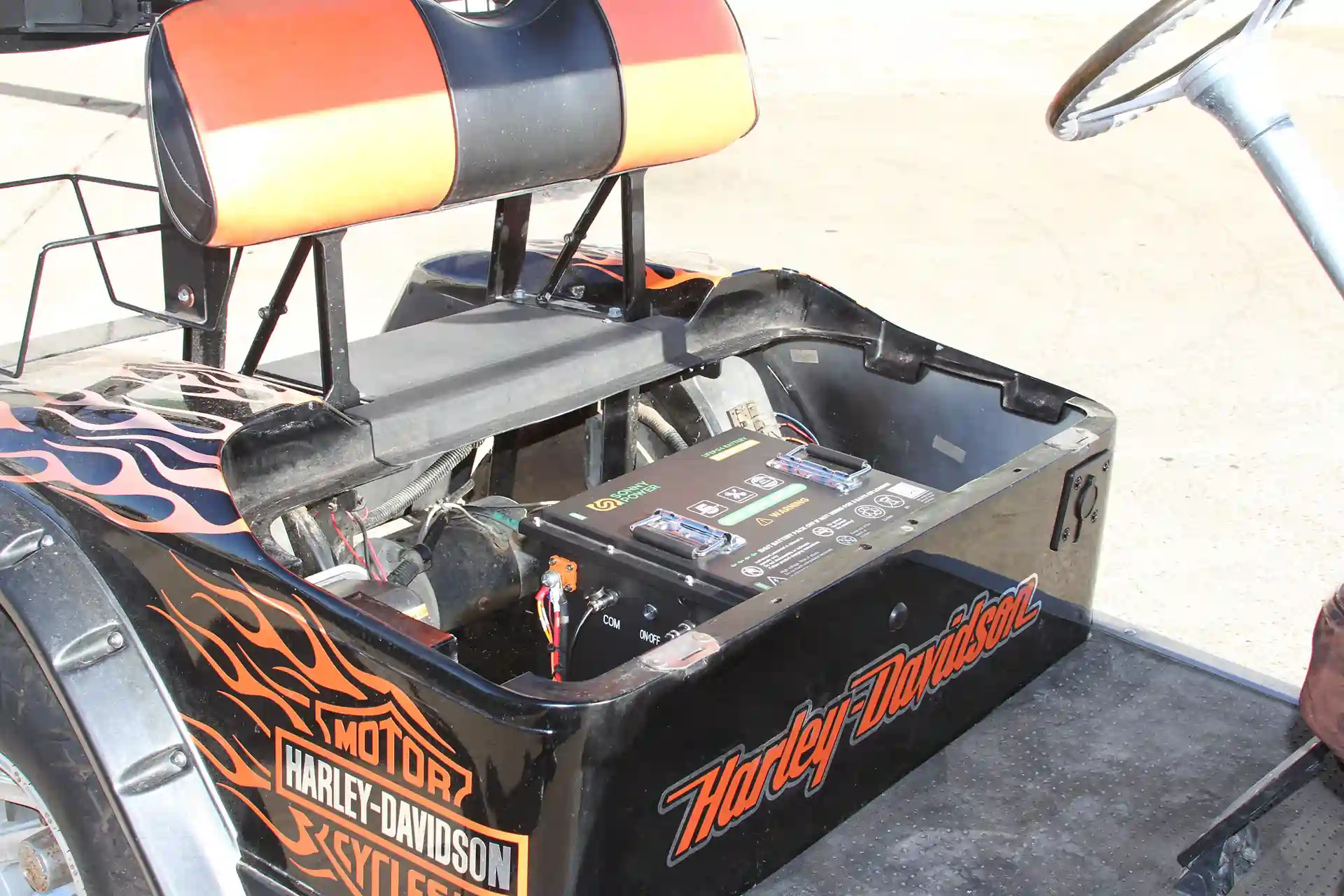

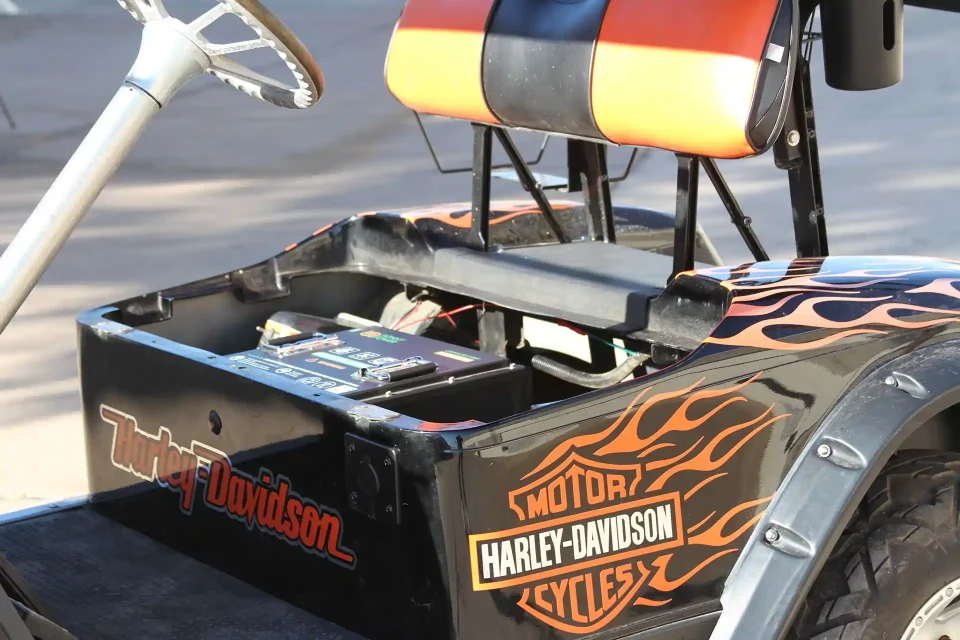

ACTUAL USER INSTALLATION IMAGES

sp gcb detail 45
sp gcb detail 46
sp gcb detail 47
sp gcb detail 48
sp gcb detail 32
sp gcb detail 33
sp gcb detail 34
sp gcb detail 35
sp gcb detail 36
sp gcb detail 37
sp gcb detail 38
sp gcb detail 39
sp gcb detail 40
sp gcb detail 41
sp gcb detail 42
sp gcb detail 43
sp gcb detail 44
sp gcb detail 27
sp gcb detail 28
sp gcb detail 29
sp gcb detail 30
sp gcb detail 31
sp gcb detail 5
sp gcb detail 6
sp gcb detail 7
sp gcb detail 8
sp gcb detail 9
sp gcb detail 10
sp gcb detail 11
sp gcb detail 12
sp gcb detail 13
sp gcb detail 14

COMPATIBLE WITH MOST MANUFACTURERS AND MODEL CARTS

ezgo
yamaha
club car
epic carts
evolution
madja x
bintelli
vivid
advanced ev
trojan ev
titan electric vehicles
icon
gem
nivel
navitas storm
coleman
kandi
bad boy buggies
tomberlin
polaris
CERTIFICATIONS
certifications

YOUR JOURNEY

sp green battery 1

FULLY CHARGED

  • Description

    36V Lithium-Iron (LiFePO4) battery systems for golf carts are designed as drop-in replacements for lead-acid batteries in Club Car, E-Z-GO, YAMAHA, and other vehicles. They are easy to install and offer numerous benefits.
    These advantages include significantly shorter charging times, reduced electric bills, no maintenance requirements, a longer lifespan, and a lighter weight.
    MODEL: SP-36V105-GC
    VOLTAGE: 38.4V
    NOMINAL CAPACITY: 105Ah
    CASE: METAL/FR
    BATTERY: Deep-Cycle Lithium Iron Phosphate
    COLOR: BLACK
    LIFE CYCLE:

    Life Cycle 1C @ DOD 100%≥3500 cycles
    0.2C @ DOD 100%≥6000 cycles

    INTELLIGENCE: Multiple Microprocessors, State of Charge Gauge with Aging Compensation, Current Sensor, Fuse, CAN Bus.

  • Warranty

    Sonny Power Co.'s 36V / 48V / 72V Lithium Golf Cart Batteries, built with CATL’s advanced LiFePO4 cells, offer over 6000 recharge cycles and a 10–12 year lifespan, significantly outperforming other lithium or lead-acid batteries. These batteries operate efficiently down to -20°F, delivering twice the power of lead-acid batteries at a quarter of the weight. They come with an 10-year limited warranty, covering defects for the original purchaser, with full coverage for the first three years and prorated coverage thereafter. Register your battery within 60 days of purchase at sonnypower.com/product-registration/ to receive full warranty benefits.

  • Specifications

    General
    Model:P-36V105-GC
    Voltage:38.4V
    Nominal Capacity:105Ah
    Case:Metal/FR
    Battery:Deep-cycle Lithium Iron Phosphate
    Color:Black
    Life Cycle:1C @ DOD 100%≥3500 CYCLES
    0.2C @ DOD 100%≥6000 CYCLES
    Intelligence:Microprocessors, SOC algorithm with charge
    and discharge end Calibration, Current sensor,
    Fuse, CAN Bus
    Physical
    Battery Type:Lithium Iron Phosphate
    Rated Capacity:105Ah
    Nominal Voltage:38.4V (12S)
    Standard Charge Voltage:43.8V
    Stored Energy:(4023Wh)
    IP Protection Level:IP67
    Battery Weight:82.45 LBS (37.4 KG)
    Battery Life:10-12 Years
    BMS:250A
    CommunicationsCAN / Bluetooth
    Charger:15-50A (Optional)
    Impendence:≤30mΩ
    Current
    Battery Pack Factory SOC:50%
    Battery SOC Operating Range:0-100%
    BMS Consumption:Self-consumption current in sleep mode：<800uA Self-consumption current during operation：<35mA
    Temperature Acquisition Accuracy:≤2（° at room temperature）
    Current Acquisition Accuracy:≤±15mV
    Equalizing Current:30±10mA （Passive equalization ）
    Protect Function:Over-current protection, over-charge protection, over-discharge protection, high and low-temperature protection, and abnormal alarm function.
    Charge / Discharge
    Charging method:CC-CV
    Charge Current:Normal 30A and Max 100A
    Cut-off voltage:30V
    MAX. Continuous
    Discharge Current:    		250A (BMS)
    Peak Discharge Current:600A @3S
    Self-discharge rate/month:≤3%/Month
    Temperature
    Charge methodCharge0~55°C
    Discharge-20~60°C
    Storage environmentTemperature10~45°C
    Humidity≤ 75%RH
    Dimensional
    Battery Dimensions: (L x W x H) 15.79” x 13.27” x 10.83”
    (401 x 337 x 257mm)

    Voltage Curve:

    COMPLIANCE SPECIFICATIONS
    CertificationsCE, UN 38.3, RoHS et IEC
    Shipping classificationUN 3480


  • Comparison Table

    SONNY POWER LITHIUM GOLF CART BATTERIES
    Batteries:36V 105Ah48V 67Ah48V 105Ah48V 135Ah48V 160Ah48V 200Ah72V 105Ah
    Nominal Voltage:38.4V51.2V51.2V51.2V51.2V51.2V76.8V
    Stored Energy (Wh)4023Wh3430Wh5376Wh6912Wh8192Wh10240Wh8064Wh
    IP RatingIP67IP67IP67IP67IP67IP67IP67
    Weight 82.45 LBS
    (37.4 KG)    		66 LBS
    (30 KG)    		102 LBS
    (46.30 KG)    		131.39 LBS
    (59.60 KG)    		145.50 LBS
    (66 KG)    		194 LBS
    (88 KG)    		143.3 LBS
    (65 KG)
    Dimensions
    (L x W x H)    		15.79” x 13.27” x 10.83”15.15" x 13.46" x 9.76"18.5” x 13.11” x 10.12”29.13” x 13.74” x 9.53”30.23” x 11.81” x 9.65”33.46” x 13.15” x 9.48”25.59” x 12.99” x 9.53”
    Max Continuous Discharge
    Current (A)    		250A180A250A250A250A250A250A
    Peak Discharge Current (A)600A @3s500A @2s600A @3s600A @3s600A @3s600A @3s600A @3s
    Self Discharge Rate per Month<3%<3%<3%<3%<3%<3%<3%
    Storage Environment Temperature10~45°C10~45°C10~45°C10~45°C10~45°C10~45°C10~45°C
    Storage Environment Humidity≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH
    Charge Temperature0~55°C0~55°C0~55°C0~55°C0~55°C0~55°C0~55°C
    Discharge Temperature-20~60°C-20~60°C-20~60°C-20~60°C-20~60°C-20~60°C-20~60°C
    Cut-Off Voltage30V40V40V40V40V40V60V
    Cell Count12161616161624
    Cell TypePrismaticPrismaticPrismaticPrismaticPrismaticPrismaticPrismatic
    Cell Configuration12S1P16S1P16S1P16S1P16S1P16S1P24S1P
    Cell ChemistryLFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)
    Shell MaterialMetal/FRMetal/FRMetal/FRMetal/FRMetal/FRMetal/FRMetal/FR

  • Performance

    Low Maintenance

    Fast Charging

    Safest lithium technology

    High discharge currents

    High capacity

    Low temperature and high efficiency

    High cycle count

    Low self discharge

  • Downloads

    DOWNLOADS

    SP Golf Cart Batteries Catalog



    Data Sheet 36V 105AH



    SP User Manual - Golf Cart



  • 36V Lithium-Iron (LiFePO4) battery systems for golf carts are designed as drop-in replacements for lead-acid batteries in Club Car, E-Z-GO, YAMAHA, and other vehicles. They are easy to install and offer numerous benefits.
    These advantages include significantly shorter charging times, reduced electric bills, no maintenance requirements, a longer lifespan, and a lighter weight.
    MODEL: SP-36V105-GC
    VOLTAGE: 38.4V
    NOMINAL CAPACITY: 105Ah
    CASE: METAL/FR
    BATTERY: Deep-Cycle Lithium Iron Phosphate
    COLOR: BLACK
    LIFE CYCLE:

    Life Cycle 1C @ DOD 100%≥3500 cycles
    0.2C @ DOD 100%≥6000 cycles

    INTELLIGENCE: Multiple Microprocessors, State of Charge Gauge with Aging Compensation, Current Sensor, Fuse, CAN Bus.

  • Sonny Power Co.'s 36V / 48V / 72V Lithium Golf Cart Batteries, built with CATL’s advanced LiFePO4 cells, offer over 6000 recharge cycles and a 10–12 year lifespan, significantly outperforming other lithium or lead-acid batteries. These batteries operate efficiently down to -20°F, delivering twice the power of lead-acid batteries at a quarter of the weight. They come with an 10-year limited warranty, covering defects for the original purchaser, with full coverage for the first three years and prorated coverage thereafter. Register your battery within 60 days of purchase at sonnypower.com/product-registration/ to receive full warranty benefits.

  • General
    Model:P-36V105-GC
    Voltage:38.4V
    Nominal Capacity:105Ah
    Case:Metal/FR
    Battery:Deep-cycle Lithium Iron Phosphate
    Color:Black
    Life Cycle:1C @ DOD 100%≥3500 CYCLES
    0.2C @ DOD 100%≥6000 CYCLES
    Intelligence:Microprocessors, SOC algorithm with charge
    and discharge end Calibration, Current sensor,
    Fuse, CAN Bus
    Physical
    Battery Type:Lithium Iron Phosphate
    Rated Capacity:105Ah
    Nominal Voltage:38.4V (12S)
    Standard Charge Voltage:43.8V
    Stored Energy:(4023Wh)
    IP Protection Level:IP67
    Battery Weight:82.45 LBS (37.4 KG)
    Battery Life:10-12 Years
    BMS:250A
    CommunicationsCAN / Bluetooth
    Charger:15-50A (Optional)
    Impendence:≤30mΩ
    Current
    Battery Pack Factory SOC:50%
    Battery SOC Operating Range:0-100%
    BMS Consumption:Self-consumption current in sleep mode：<800uA Self-consumption current during operation：<35mA
    Temperature Acquisition Accuracy:≤2（° at room temperature）
    Current Acquisition Accuracy:≤±15mV
    Equalizing Current:30±10mA （Passive equalization ）
    Protect Function:Over-current protection, over-charge protection, over-discharge protection, high and low-temperature protection, and abnormal alarm function.
    Charge / Discharge
    Charging method:CC-CV
    Charge Current:Normal 30A and Max 100A
    Cut-off voltage:30V
    MAX. Continuous
    Discharge Current:    		250A (BMS)
    Peak Discharge Current:600A @3S
    Self-discharge rate/month:≤3%/Month
    Temperature
    Charge methodCharge0~55°C
    Discharge-20~60°C
    Storage environmentTemperature10~45°C
    Humidity≤ 75%RH
    Dimensional
    Battery Dimensions: (L x W x H) 15.79” x 13.27” x 10.83”
    (401 x 337 x 257mm)

    Voltage Curve:

    COMPLIANCE SPECIFICATIONS
    CertificationsCE, UN 38.3, RoHS et IEC
    Shipping classificationUN 3480

  • SONNY POWER LITHIUM GOLF CART BATTERIES
    Batteries:36V 105Ah48V 67Ah48V 105Ah48V 135Ah48V 160Ah48V 200Ah72V 105Ah
    Nominal Voltage:38.4V51.2V51.2V51.2V51.2V51.2V76.8V
    Stored Energy (Wh)4023Wh3430Wh5376Wh6912Wh8192Wh10240Wh8064Wh
    IP RatingIP67IP67IP67IP67IP67IP67IP67
    Weight 82.45 LBS
    (37.4 KG)    		66 LBS
    (30 KG)    		102 LBS
    (46.30 KG)    		131.39 LBS
    (59.60 KG)    		145.50 LBS
    (66 KG)    		194 LBS
    (88 KG)    		143.3 LBS
    (65 KG)
    Dimensions
    (L x W x H)    		15.79” x 13.27” x 10.83”15.15" x 13.46" x 9.76"18.5” x 13.11” x 10.12”29.13” x 13.74” x 9.53”30.23” x 11.81” x 9.65”33.46” x 13.15” x 9.48”25.59” x 12.99” x 9.53”
    Max Continuous Discharge
    Current (A)    		250A180A250A250A250A250A250A
    Peak Discharge Current (A)600A @3s500A @2s600A @3s600A @3s600A @3s600A @3s600A @3s
    Self Discharge Rate per Month<3%<3%<3%<3%<3%<3%<3%
    Storage Environment Temperature10~45°C10~45°C10~45°C10~45°C10~45°C10~45°C10~45°C
    Storage Environment Humidity≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH≤ 75%RH
    Charge Temperature0~55°C0~55°C0~55°C0~55°C0~55°C0~55°C0~55°C
    Discharge Temperature-20~60°C-20~60°C-20~60°C-20~60°C-20~60°C-20~60°C-20~60°C
    Cut-Off Voltage30V40V40V40V40V40V60V
    Cell Count12161616161624
    Cell TypePrismaticPrismaticPrismaticPrismaticPrismaticPrismaticPrismatic
    Cell Configuration12S1P16S1P16S1P16S1P16S1P16S1P24S1P
    Cell ChemistryLFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)LFP (LiFePO4)
    Shell MaterialMetal/FRMetal/FRMetal/FRMetal/FRMetal/FRMetal/FRMetal/FR

  • Low Maintenance

    Fast Charging

    Safest lithium technology

    High discharge currents

    High capacity

    Low temperature and high efficiency

    High cycle count

    Low self discharge

  • DOWNLOADS

    SP Golf Cart Batteries Catalog



    Data Sheet 36V 105AH



    SP User Manual - Golf Cart



Additional information

Configuration

EZGO TXT, EZGO RXV, Club Car, Yamaha, Other

Reviews

There are no reviews yet.

Be the first to review “36V 105AH LITHIUM BATTERY (LiFePO4) UPGRADE KIT (SP-36V105-GC) FOR GOLF CARTS”

Your email address will not be published. Required fields are marked *

Related Products
